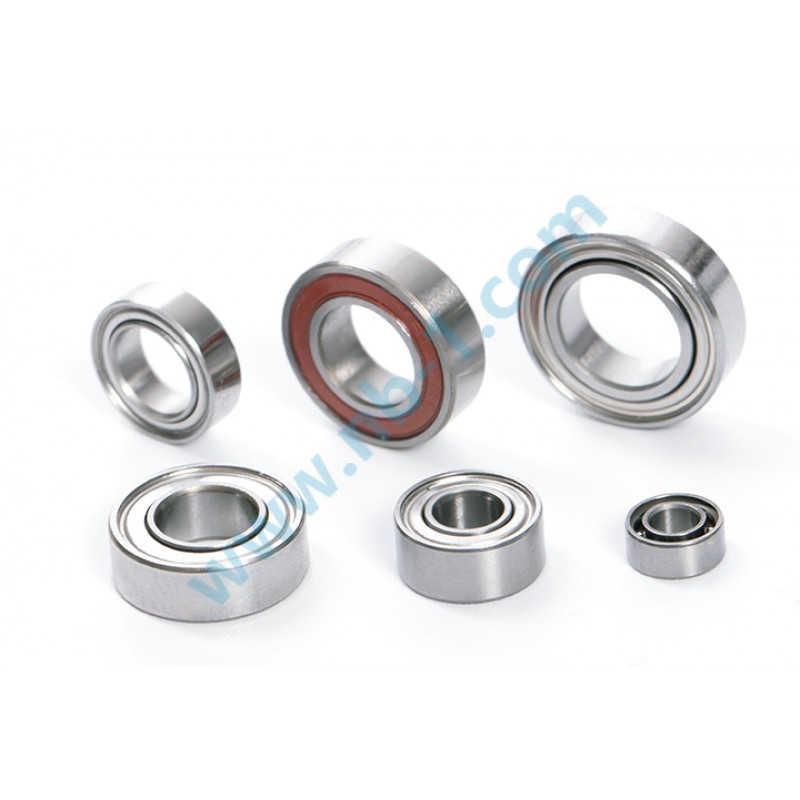

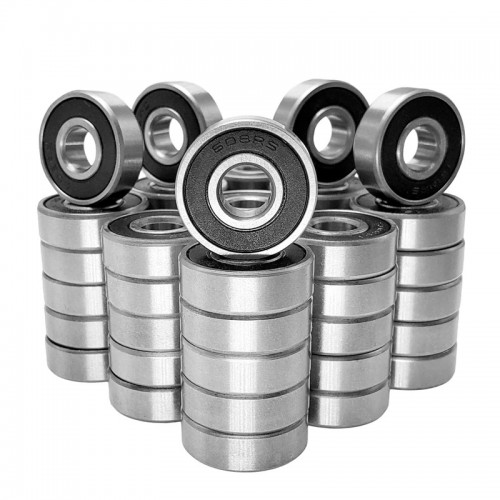

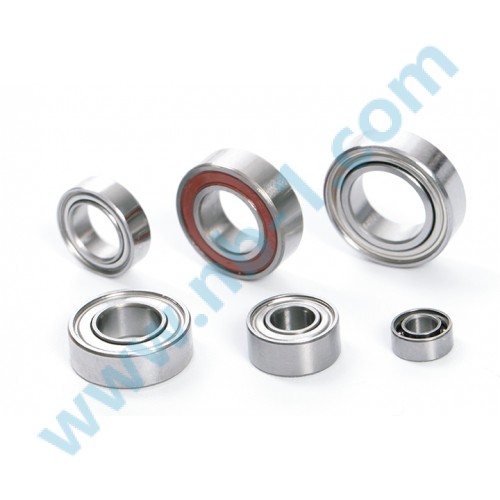

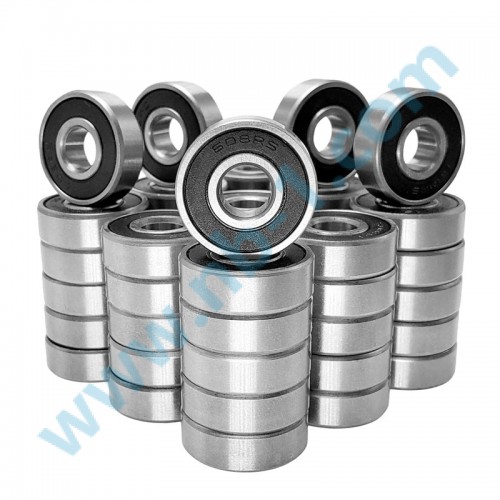

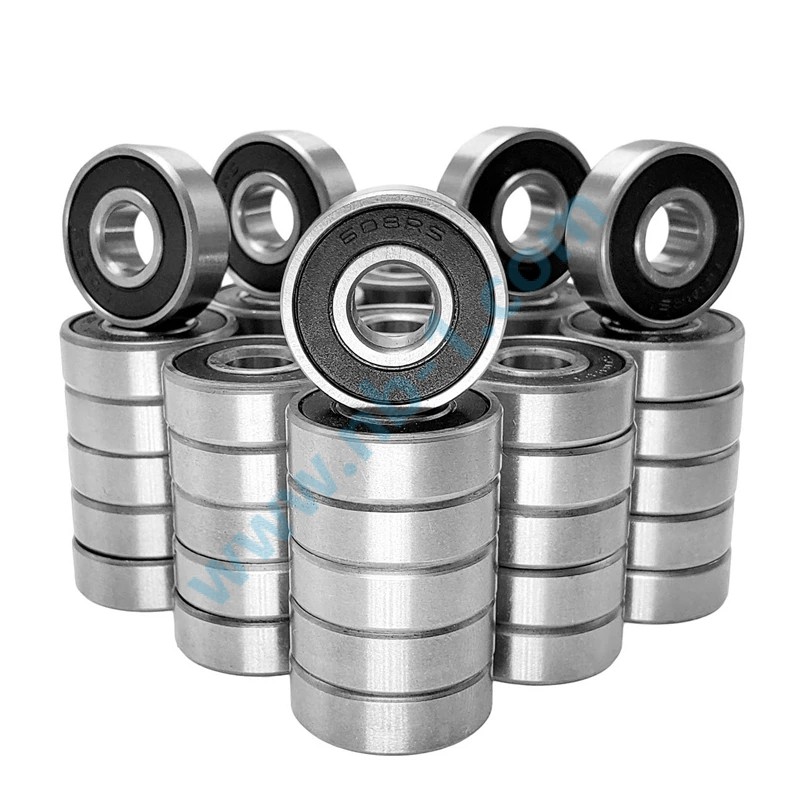

Metric Standard Miniature Ball Bearings 600 MR Series 1-9 mm Cixi Miniature Bearings

  • Part Number: 681 ~ 639
  • Availability: In Stock

This product has a minimum quantity of 100

Bearing Type: Radial Ball Bearings

Construction: Single Row

Materials: Chrome Steel(GCr15/SAE52100) or Stainless Steel(440/316/304)

Seal Type: Open, ZZ(Metal Shields), 2RS(Rubber Seals)

Tolerance: P0(ABCE-1), P6(ABCE-3), P5(ABCE-5), P4(ABEC-7), P2(ABCE-9)

Clearance: C0, C2, C3

Noise: Z, Z1, Z2, Z3

Vibration: V, V1, V2, V3

Temperature Range: -30° to 110 °C

Bore Diameter: 1 ~ 9 mm

Bearings Dimension Table

Bearing Type Metric Raidal Ball Bearing, Single Row
Bearing Part No. 681
Bore Diameter (d) 1.0 mm 0.0394 in
Flange Diameter (Df) 3.8 mm 0.1496 in
Outer Diameter (D) 3.0 mm 0.1181 in
Min. Radius (rs) 0.05 mm 0.0020 in
Width (B) (Open) 1.0 mm 0.0394 in
Flange Width (Bf) 0.3 mm 0.0118 in
Seal Type Open
Dynamic Load Rating (Cr) (N) 96
Static Load Rating (Cor) (N) 25
Max. Speed (Grease) (X1000 RPM) 117
Max. Speed (Oil) (X1000 RPM) 139
Cage Type W
Weight(grams) 0.03
Ball Complement
Ball Q'ty(pcs) 6
Ball Diameter 0.600 mm 0.0236 in
